AXIOM is a rhythm generating Eurorack sequencer making use of the popular concept of the Euclidean Rhythm, where a defined number of HITS is evenly distributed throughout a sequence.
It allows two CV inputs for each if its four lanes – one for the number of HITS in each lane, and a second for either the number of STEPS in each sequence or for an OFFSET to its starting position.
Each sequence can be assigned a different length, causing the rhythms in each lane to move in and out of phase with one another. A pattern of up to 21,840 steps is possible before repeating if the right settings are chosen!*
An internal clock or external CV trigger can be used to progress the sequencer.
AXIOM is available as either a DIY Kit or as a fully assembled product.
For more information please see the Manuals & DIY Instructions page, or the AXIOM YouTube Playlist.
*Hint – use STEPS MODE and set the STEPS values to 13, 14, 15 and 16.

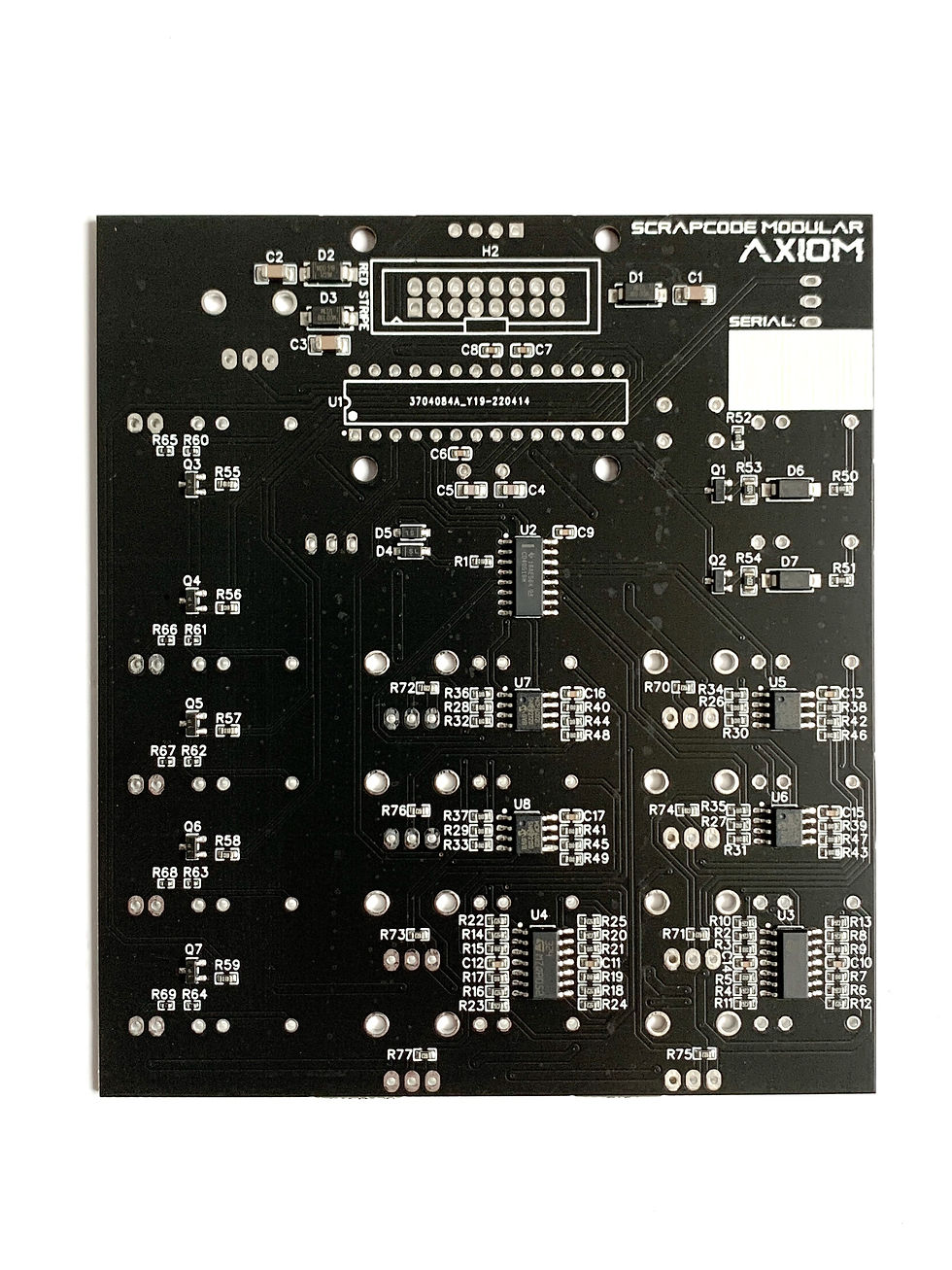

AXIOM - Euclidean Rhythm Generator - DIY Kit
DIY Kit
If the DIY Kit option is selected, then this product will supplied in component form as pictured, and will require a competent person to safely assemble and solder it.
Please note that DIY Kits are not eligible for return once any form of assembly or modification has begun, unless they can be proven to have been delivered faulty or damaged.
For further information please see our Terms & Conditions.
Tech Specs
Width – 20HP
Depth – 30mm (including ribbon connector)
Outputs – 2ms pulses at 6.5V
Trigger Inputs – Respond to rising edge triggers of 0-3V or greater
CV Inputs – Operate over the full range of available values when presented with -5V to +5V
+5V Current Draw – 38mA
+12V Current Draw – 26mA
-12V Current Draw – 2mA
